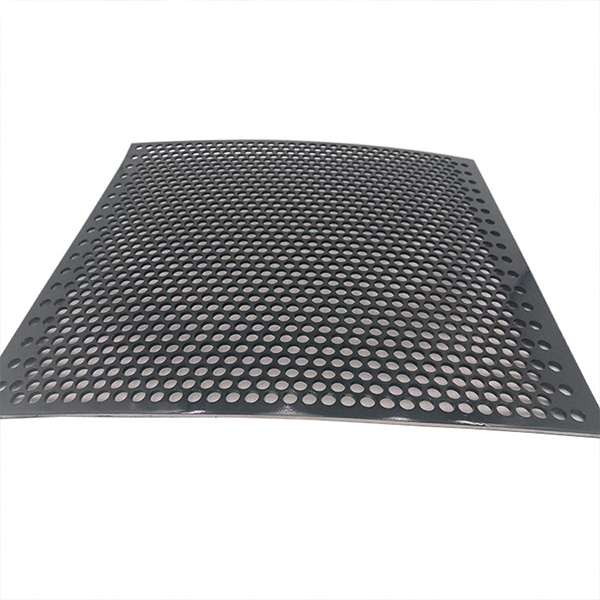

冲孔网和冲孔板，圆孔网是同一个产品冲孔网是我们厂非常重视的产品研发上用了很多心思，冲孔网是用不同材质经过数控冲床冲压而成的，现在大家对冲孔网要求越来越高要能做出高精端的产品对模具的要求那是非常高所以我们近几年用心钻研目前像网孔最小现在可以做0.4mm~1mm的微孔平整度误差在0.1~2mm，孔型花样也积攒许多生产经营，我厂目前生产设备工艺有重型冲，砖塔冲孔，微孔，冲孔网孔型，板厚，孔和距大小，材质，表面处理方式都是可以选择的，我厂也有现货供应都是常规规格材质是冷板，镀锌板，不锈钢304，孔型都是默认圆孔，孔和距大小都是常规规格，板厚0.5~2mm，外形尺寸1000mm*2000mm，我厂生产的冲孔网严格按照工业用金属冲孔网技术要求和检验方法等同于采用ISO 10630：1994（工业用金属穿孔板，技术要求和检验方法）（英语版）中华人民共和国国家标准GB/T 19360—2003/ISO 10630：1994中华人民共和国国家质量监督检验检疫总局发布2004-06-01实施版（ISO 10630:1994,IDT）有需要的联系河北逍迪丝网制品有限公司为你报价
Punching net and punching plate, round hole net is the same product, punching net is our factory attaches great importance to the product research and development with a lot of thought, punching net is made of different materials through CNC punch, now we have higher and higher requirements for punching net, to be able to make high-end products, the requirements for mold is very high, so we study hard in recent years, at present, like the mesh is the smallest We can make 0.4mm ~ 1mm micro hole, the flatness error is 0.1 ~ 2mm, and the hole pattern has accumulated a lot of production and operation. At present, our production equipment and process include heavy punching, brick tower punching, micro hole, punching mesh, hole type, plate thickness, hole distance, material and surface treatment method. Our factory also has spot supply, and the materials are conventional specifications, including cold plate, galvanized plate and stainless steel 304 The hole type is the default round hole, and the hole and distance size are conventional specifications. The plate thickness is 0.4 ~ 2mm, and the overall size is 1000mm * 2000mm. The punching mesh produced by our factory strictly complies with the technical requirements and inspection methods of industrial metal punching mesh, which is equivalent to the national standard GB / T of the people's Republic of China (ISO 10630:1994) 19360-2003 / ISO 10630:1994 General Administration of quality supervision, inspection and Quarantine of the people's Republic of China issued the implementation version of 2004-06-01 (ISO 10630:1994, IDT)
一般同城或者是安平县附近的是可以送货上门的，远的都是发物流，量大的可以包车，量小的发物流配货也可以送货上门，样品有的发物流太小的就走快运或者快递了，不用担心运输和没有车问题因为安平县有一个很大的物流园区发往全国各地
Generally, the goods in the same city or near Anping County can be delivered to the door, while the goods far away can be delivered to the door. The large quantity goods can be chartered, and the small quantity goods can also be delivered to the door. Some samples can be delivered by express or express if the logistics is too small. There is no need to worry about transportation and no cars, because Anping County has a large logistics park to send to all parts of the country
常规1孔1距，2孔2距，3孔3距，5孔2距，5孔3距，5孔5距，8孔4距，10孔3距，10孔5距（孔大小和间距也可以按你要求定做）
Conventional 1 hole 1 pitch, 2 hole 2 pitch, 3 hole 3 pitch, 5 hole 2 pitch, 5 hole 3 pitch, 5 hole 5 pitch, 8 hole 4 pitch, 10 hole 3 pitch, 10 hole 5 pitch (hole size and spacing can also be customized according to your requirements)
本厂规定了用于筛分的工业用金属冲孔网的技术要求和检验方法，规定了工业用金属冲孔网，包括平板卷板，现货的普通用途，标准用于GB/T 10611中最大厚度为80mm厚的低碳钢板，公称尺寸符合GB/T 10612和GB/T10613中0.1mm-300mm圆孔和0.1-300mm方孔等孔型
The factory has stipulated the technical requirements and inspection methods of industrial metal punching mesh used for screening, and specified the general use of industrial metal punching mesh, including flat plate, coil and spot. The standard is used for low carbon steel plate with the maximum thickness of 80mm in GB / T 10611, and the nominal size meets the pass patterns of 0.1mm-300mm round hole and 0.1-300mm square hole in GB / T 10612 and GB / t10613
张板宽度不超2.5米长度不超6米，张板外形尺寸控制在2.5m*6m范围内就可以了现货一般都是1000mmX2000mm尺寸，卷板是一卷的高度为1000mm长度为20米一卷
The width of the sheet is not more than 2.5 meters, the length is not more than 6 meters, and the overall dimension of the sheet is controlled within the range of 2.5 m * 6 m. The stock is generally 1000 mm x 2000 mm, the height of the coil is 1000 mm, and the length of the coil is 20 meters
Straight row: straight row is a straight line of mesh holes, so it is straight row
The best way to arrange the shape of plum blossom is to arrange the shape of the plum blossom with high intensity and frequent use. Generally speaking, the default is 60 ° for wrong arrangement
Compared with 60 ° and 45 ° staggered, 45 ° has a different flavor choice
冷板，镀锌板，热板，铝板，不锈钢这五个用的比较普遍pp板，pvc板，高锰钢板，铜板（合金板还分1系，6系，7系，5系，4系，3系，2系，1系为常用系类）（不锈钢分为201，304，304L，316，316L其中304用量最多一般说要不锈钢的都是默认报价304材质）
Cold plate, galvanized plate, hot plate, aluminum plate and stainless steel are common used in PP plate, PVC plate, high manganese steel plate and copper plate (alloy plate is also divided into 1 series, 6 series, 7 series, 5 series, 4 series, 3 series, 2 series and 1 series are commonly used types) (stainless steel is divided into 201304304l and 316316L, of which 304 is the most commonly used stainless steel material with the default quotation 304 material)
冷板都是薄板0.4mm~2mm，热板都是厚板2mm厚以上都是热板，镀锌板0.4mm~4mm,不锈钢板普通是0.8mm~3mm在厚也有，铝板0.4mm~8mm为普通板在厚也有，卷板0.2mm~1mm太好卷板很少不代表没有
Cold plate is thin plate 0.4mm ~ 2mm, hot plate is thick plate, 2mm thick or more is hot plate, galvanized plate 0.4mm ~ 4mm, stainless steel plate is 0.8mm ~ 3mm in thickness, aluminum plate 0.4mm ~ 8mm is ordinary plate in thickness, rolling plate 0.2mm ~ 1mm is too good, rolling plate rarely does not mean No
喷漆工艺，烤漆工艺，不锈钢可以选择抛光工艺，铝板可以选择阳极氧化工艺，拉丝工艺，热镀锌工艺，冷镀锌工艺，电镀锌工艺，喷塑工艺又叫粉末喷涂
Painting process, baking process, stainless steel can choose polishing process, aluminum plate can choose anodizing process, wire drawing process, hot galvanizing process, cold galvanizing process, electro galvanizing process, plastic spraying process, also known as powder spraying
像喷塑，喷漆，烤漆表面处理颜色是可以选择的黄色，绿色，红色，橙红色，橙色，橙黄色，黄色，黄绿色，蓝绿色，蓝色，蓝紫色，紫色，紫红色，护栏绿，护栏黄，要量大的还可以配色因为比如黑色还分深黑色浅黑色哑光黑等，深多少浅多少都是可以让师傅调配出来
Like spray, spray paint, baking paint, surface treatment color is optional, yellow, green, red, orange red, orange, orange yellow, yellow, yellow green, blue-green, blue, blue purple, purple, purplish red, guardrail green, guardrail yellow, a large amount of color can also be matched, because for example, black is also divided into dark black, light black, matte black and so on, how deep and how shallow can let the master adjust Match it

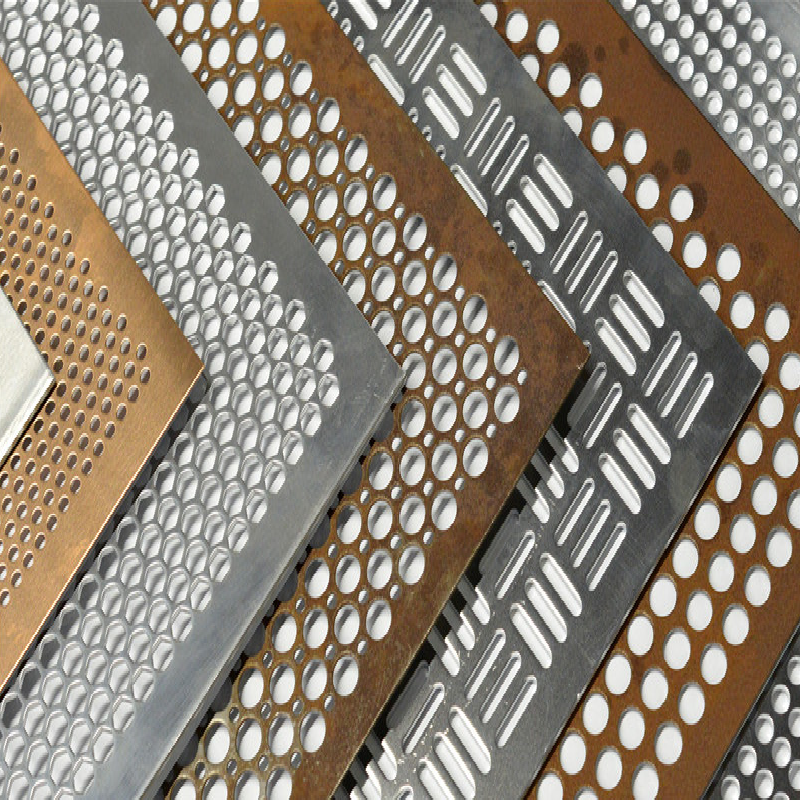

The most common hole is round hole, followed by hexagonal hole, long hole, square hole, fish scale hole, oblong hole, rectangular hole, special-shaped hole, bulging hole, louver hole, bridge hole, diamond hole, Pentagon hole, eight shaped hole, cross hole, nail hole, plum blossom hole, herringbone hole, I-shaped hole, micro hole, large diameter hole, crocodile mouth, long hole, triangle hole, and some others can not be named Provide pattern or CAD drawing to arrange production for you
Our factory also has the spot supply is the conventional specification, the material is cold plate, galvanized plate, stainless steel 304, the hole type is the default round hole, the hole and distance size is the conventional specification, the plate thickness is 0.4 ~ 2mm, the overall size is 1000mm * 2000mm
The surface roughness can not rule out the slight damage of metal sieve plate due to mechanical action in the punching process. When the damage will have a significant impact on the intended use, the buyer should negotiate with the manufacturer before ordering to improve the cleanliness. The surface of metal sieve plate is usually covered with a thin oil film, and there should be no excessive oil leakage after stacking. The deoiled Xu metal sieve plate, such as solvent or steam treatment, can leave the factory under permitted conditions. For low carbon steel, if there is no subsequent protective treatment, it is not suitable for deoiling
For the following dated references, all subsequent amendments or revisions are not applicable to this standard. However, parties to agreements based on this standard are encouraged to study whether the latest versions of these documents can be used. For undated references, the latest edition is applicable to this standard
GB / T 10611-2003, ISO 2194:1991 industrial screens woven wire cloth, enforced plate and electroformed sheet design and nominal sizes of openings (MOD)
GB / T 10612 industrial sieve plates - circular and square sieve plates with plate thickness < 3mm (GB / T 10612-2003, ISO 7805-2:1987, industrial plate screens Part 2: thickness below 3 mm, MOD)
GB / T 10613: industrial plate screens Part 1: thickness of 3 mm and above, mod
For the tolerance of mesh size and spacing of round hole and square hole, when the thickness of perforated plate is equal to or greater than 3mm, it shall be in accordance with GB / T 10613; when the thickness of perforated mesh plate is less than 3mm, it shall be in accordance with GB / T 10612
Plate thickness, plate thickness should be less than the basic size of the screen and less than the width of the rib, according to the user's requirements, the two sides have another agreement (Note 3: the uniformity of the punching mesh before punching depends on the actual tolerance used in the binding, and conforms to the so-called "manufacturing tolerance". If there are special tolerance requirements, they should be agreed before ordering.)
The tolerances of plate width and length, plate width A1 and plate length B1 of shear plate are given in Table 2. (Note 4: the common size of sieve plate is the size after punching and roller leveling but without shearing. In this case, due to the extension of punching process, the deviation of width and length will be greater than the actual tolerance of non punching material produced by the binding plant, so the tolerance in Table 2 is not applicable.)
Vertical deviation, the vertical deviation C of shear plate, is usually expressed as "vertical deviation percentage". It can be quantitatively expressed as the vertical projection of the transverse side (plate width A1) on the longitudinal side (plate length B1), which is the percentage of A1. Calculate as follows: vertical deviation percentage = 100c-a1, vertical deviation tolerance is given in Table 3
The tolerances for edge width, e and F are given in Table 4
Flatness, after punching the sieve plate with the roller leveling, the flatness tolerance is given in Table 5. The applicable range of sieve plate is: the longest length is 200mm; the side width is not more than the thickness of plate T + 0.5p; the screen area is 20% - 40%. The tolerance of the outside or non punch area unevenness of the punching net shall be determined before ordering
订货须知：当您在我厂下单之后，您只要放心的在家坐等收货就可以了，接下来的事由我们为您完成，我们的负责人员开始下单排产，按照您的需求将您所需要的冲孔板认真的完成，然后我们会和您沟通好收货方式，为您找到您最方便接货的物流，是整车，还是配货，为您计算好，谈好最合适的价格，再为您的产品穿上一层防护衣，保证它完好无损的送到您的家里
生产周期：根据客户订单量的大小和您商谈好生产周期
付款方式：选择我们之后，预付30%，生产完成后，我们会通知您，您将剩余的货款打到我方账户，我们开始为您发货
产品包装：根据产品的精度和用途，我们会选择简装或是精装，以保证货品的安全（可以沟通）
运输方式：本地有通往全国各地的物流，可以零担，整车，配货，陆运，空运，海运和TNT，DHL，FEDEX，UPS，EMS，快递，小件快运，我们会和客户商量好，为您选择最经济合适的运输方式，绝不让您多花一分钱
质量保证：客户收到货后5天内，如发现材质不达标，规格有误，我们将无条件为您退货或调换，如是对方下单有误，我们只能努力帮助您改进到最好为止，这便是我们河北逍迪丝网制品有限公司最人性化的服务方式，您准备好了吗？我们时刻准备着，随时欢迎全国各地的新老客户来电咨询和来厂参观考察定做
河北逍迪丝网制品有限公司是专业生产冲孔网的厂家，拥有10年以上的生产经营，在这几年中本厂凭着诚信经营的理念不断扩大，我们冲孔网工厂生产设备有：普通冲压机，高速冲压机，自主研发小微孔冲压机，龙门冲，砖塔冲孔，重型冲孔机，万瓦级别激光切割机，3000W激光切割机，焊接设备，折弯机，校平机，剪板机，精密校平机，（对板面平整度要求苛刻的客户群体0.5-2mm误差）通过了ISO9001认证SGS认证，合格证，等资质，我厂凭着产品质量好精品多信誉好价格合理的优势把产品销售到了国内和国外，相信选择我们你是对的选择，诚信是基石，质量是保证，双赢是目标，信任在第一次合作开始，满意在第一服务后产生，河北逍迪愿以自己的智慧，人品，产品，携手商界同仁，共创美好明天
